NanoSpin Set-Up
Brief Description

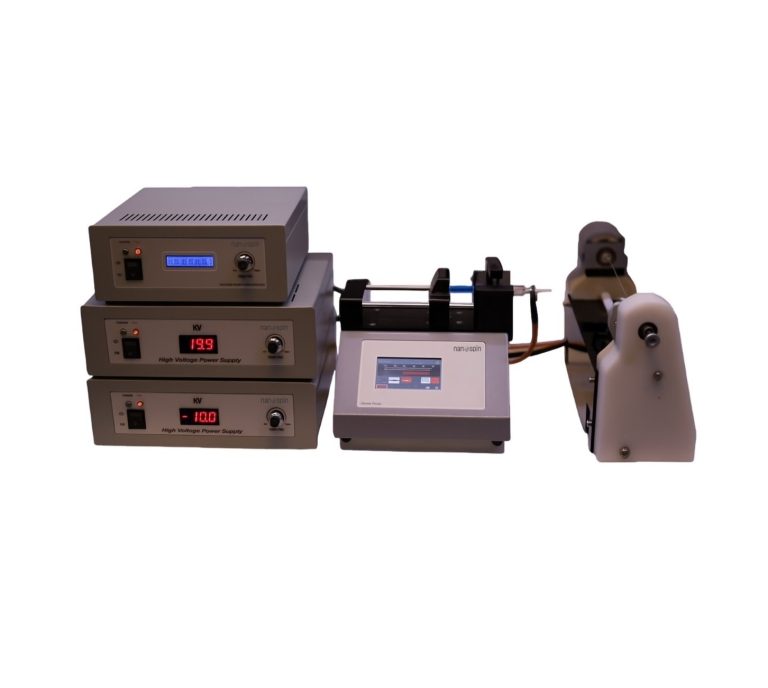

The NanoSpin Modular Electrospinning Set-Up is a compact yet versatile system designed for high-quality nanofiber production in research and small-scale manufacturing.
The system includes a syringe pump, a cylinder collector with controller, a positive high-voltage power supply, and an optional negative high-voltage power supply.
It combines precision control, modular collector options, and high-voltage performance in a streamlined, lab-ready platform.
Main Features
Modular & Flexible
Swap between multiple collector types for diverse applications.
Advanced Syringe Pump
Touchscreen, internal programmable, supports up to 2 syringes with horizontal setup.
High Voltage Ready
Positive 35 kV standard, optional negative 35 kV for advanced setups.
Uniform Fiber Quality
Negative cylinder collector (Ø10 cm × 30 cm) minimizes fiber scattering.
Precision Control
Fine-tune rotation speed up to 3000 RPM with LCD feedback.
Lab-Friendly
Compact, desktop design for easy integration.
Specification
General
Chassis
- Material: Metallic body
- Power Input: 100–240 V AC / 50–60 Hz
Control System
- Syringe Pump: 4.3” touch-screen HMI (Programmable Logic Controller)
- Collector: 2×16-character LCD display with 10-turn panel-mounted potentiometer
- High Voltage: Output voltage indicator with 10-turn panel-mounted potentiometer
Syringe Pump
- Model: SP12 TPP
- Specification: 1 motor, 2 syringes max, Touch screen, Internal programmable, Pelastic holder
- Injection rate: 50 µl/h to 500 ml/h
- Usable syringe size: 1–25 mm (inner diameter)
- Horizontal setup (no need for tubing)
High Voltage Power Supply
Specification
- Model: PS-V35P (Positive) / PS-V35N (Negative)
- Max output voltage: 35 kV
- Power: 30 Watt
- Voltage monitoring: Digital (accuracy: 0.1 kV)
- Body: Durable metal casing
- Configuration:
- One positive power supply connected to the syringe pump
- One negative power supply connected to the collector (optional)
Collector
Specifications
- Negative cylinder
- Optional collectors: Plate, Wire, mandrel, single wire, radial, needle, and disk collectors
- Material: Stainless steel
- Rotational speed: 300–3000 rpm (cylindrical drum)
- Spinning distance: 5–20 cm
- Nanofiber coverage area: 30 cm × 29 cm (Cylindrical drum)
Collector Dimensions
- Negative Cylindrical Collector: 10 cm (ø) × 29 cm (L)
- Plate Collector: 30 cm × 30 cm
- Single Wire Collector (Optional): Tensioned cable (20+ µm cables)
- Needle Collector (Optional): Replaceable needle
- Disk Collector (Optional): Diameter: 3, 5, & 10 cm
- Wheel Collector (Optional): Diameter: 20 cm, Thickness: 1, 2, & 4 cm
- Mandrel (Optional): Length: 25 cm, Diameter: 2, 4, 6, 8, & 10 mm
All collectors can be attached to a negative high-voltage power supply (-35 kV)
Collector Controller
- Speed range: 0–3000 RPM
- 10-turn panel-mounted potentiometer for fine-tuning speed
- Smooth, stable motor control for consistent fiber alignment
- 2×16-character LCD for real-time speed monitoring
- Universal compatibility with NanoSpin rotary collectors
- Compact desktop design for easy lab integration
