NanoSpin Box
Brife Description

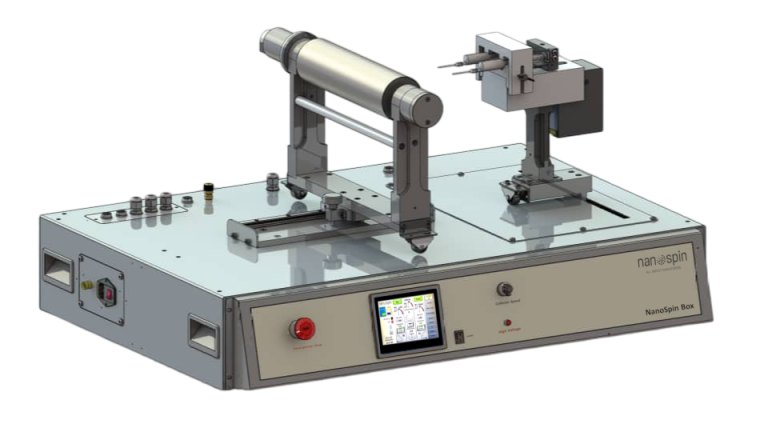

The NanoSpinBox (CompactPro Electrospinning System) is a compact, cost-effective solution for laboratory-scale nanofiber fabrication.
This user-friendly system combines essential electrospinning components with integrated safety features and customizable options, supporting a wide range of R&D projects. Despite its small footprint, the NSB-10 delivers precision control and stable performance, making it an ideal choice for universities, startups, and research labs.
Main Feachers
User-Friendly Operation
Easy syringe pump setup, supports up to 2 syringes.
Safety Features
Emergency stop, door interlock (with chamber), and high-voltage protections.
4.3” Touchscreen HMI
Simple control of all process parameters.
Compact Design
Space-saving layout for benchtop use.
Adjustable Scanning System
Ensures uniform fiber deposition, 0–3000 mm/min speed range.
Modular Collector
Cylindrical drum (Ø10 cm × 30 cm) with adjustable 300–3000 rpm speed.

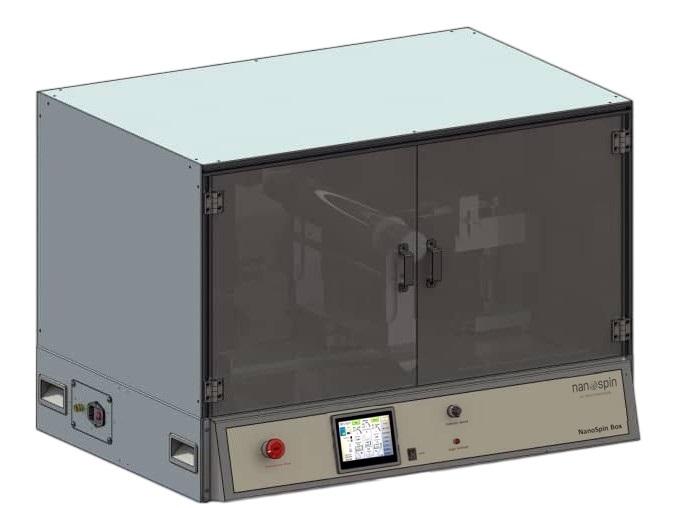

Optional Enclosed Chamber –
Transparent, ventilated, with LED lighting and safety interlock.
High Voltage System
ntegrated 0–35 kV positive HV with ±0.1 kV precision.
Customizable Collectors
Compatible with multiple collector types.
Upgradeable
Optional Negative HV and enclosed chamber for enhanced control and safety.
Specification
General
Chassis & Control System
- Material: Metallic body with front panel access
- Power Input: 100–240 V AC / 50–60 Hz
- Control System: 4.3” touch-screen HMI (Programmable Logic Controller)
- Pump Capacity: 1 syringe pump (supports up to 2 syringes)
- Scanning System: Linear motorized scanning (Speed: 0–3000 mm/min, Range: 0–25 cm)
- Distance Adjustment: Manual (5–20 cm)
Dimensions & Weight
- Control System Dimensions (L×W×H): 90 cm × 70 cm × 20 cm
- Collector Size: Ø10 cm × 30 cm
- Package Dimensions (L×W×H): 95 cm × 75 cm × 40 cm
- Weight: 45 kg (Package: ~65 kg)
Safety features
- Automatic voltage cut-off in case of door opening, grounding issues, or process disruption

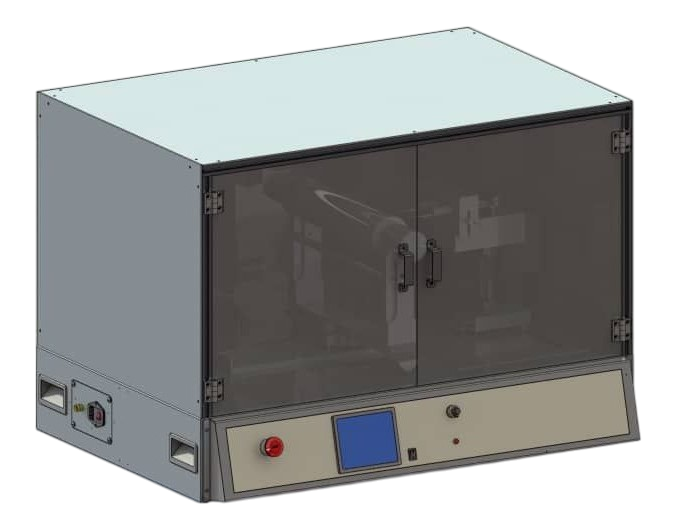

Electrospinning Chamber (Optional)
- Chamber Body: Made of acrylic/polycarbonate with transparent front door
- Lighting: Integrated LED illumination for process visibility
- Ventilation: Programmable fan for internal airflow control
- Safety: Door interlock—automatically disables high voltage when opened
- Dimensions (L×W×H): 90 cm × 70 cm × 50 cm
- Compatibility: Fully compatible with NSB-10 system layout
Main Control
- Chamber Body: Made of acrylic/polycarbonate with transparent front door
- Lighting: Integrated LED illumination for process visibility
- Ventilation: Programmable fan for internal airflow control
- Safety: Door interlock—automatically disables high voltage when opened
- Dimensions (L×W×H): 90 cm × 70 cm × 50 cm
- Compatibility: Fully compatible with NSB-10 system layout
Syringe Pump
- Horizontal setup (no need for tubing)
- Injection rate: 50 µl/h to 500 ml/h
- Usable syringe size: 1–25 mm (inner diameter)
- Optional: Co-axial nozzle with tubing
Scaning System
- Scanning Rate: 0-30 mm/s (adjustable)
- Scanning Range: 0-30 cm (adjustable)
High Voltage Power Supply
- Model: PS35 Positive & PS35 Negative
- Max. Output Voltage: 35 kV
- Power Consumption: 30 W
- Voltage Monitoring: Digital display, accuracy: 0.1 kV
- Connections:
- Two positive high-voltage power supplies linked to syringe pumps
- One negative high-voltage power supply linked to the collector (optional)
Collector
Specifications
- Negative cylinder
- Optional collectors: Plate, Wire, mandrel, single wire, radial, needle, and disk collectors
- Material: Stainless steel
- Rotational speed: 300–3000 rpm (cylindrical drum)
- Spinning distance: 5–20 cm
- Nanofiber coverage area: 30 cm × 29 cm (Cylindrical drum)
Collector Dimensions
- Negative Cylindrical Collector: 10 cm (ø) × 29 cm (L)
- Plate Collector: 30 cm × 30 cm
- Single Wire Collector (Optional): Tensioned cable (20+ µm cables)
- Needle Collector (Optional): Replaceable needle
- Disk Collector (Optional): Diameter: 3, 5, & 10 cm
- Wheel Collector (Optional): Diameter: 20 cm, Thickness: 1, 2, & 4 cm
- Mandrel (Optional): Length: 25 cm, Diameter: 2, 4, 6, 8, & 10 mm
All collectors can be attached to a negative high-voltage power supply (-35 kV)
Atmospheric Condition
Ventilation
- Programmable fan, adjustable via HMI panel
